FSH3899

P/N:

FSH3899

Rings:

6,48

Current:

2、10、20、30、50A

Voltage:

Power:0-600VAC Signal:240VAC/DC

Dimensions(unit:mm D*L) :

Φ99×54.1-125.7（ID 1.5

Operating Speed:

1000rpm

PDF Download:

FSH3899 series
Through-bore dia. 38mm  (1.5 inches),OD99mm

◆FSH Through Bore Slip Ring series is specially designed through bore for hydraulic or pneumatic rotating shaft installation.
◆Bore ID ranging from 12.7mm（0.5 inches),25.4mm(1 inches),35mm(1 3/8 inches),38mm(1.50 inches) to 226mm
◆Module design meets special requirement for Power Circuits & Signal Circuits configuration
◆Proven fiber brush techology, long life and maintenance-free performance while cost-effective
◆Engineering plastics Housing, Aluminium Alloy, Stainless Steel Housing optional
◆Wide range speed for different application, typically 250 RPM till 5000 RMP
◆International Protection IP class can meet IP66,typically IP54

Customized FSH through bore slip ring available.

Please feel free contact us, our engineers will provide you recommendation and proposal.

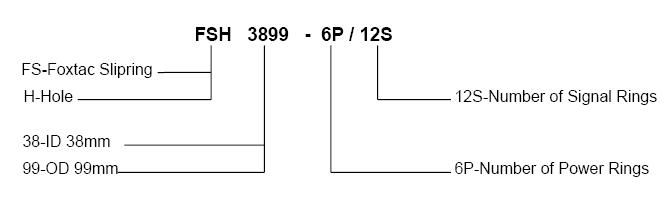

 Circuits Configuration：

Model	Length L=mm	Current		Total Circuits
		Power (10A)	Signal (2A)
FSH3899-6P	54	6	N/A	6
FSH3899-12S	54	N/A	12	12
FSH3899-12P	78	12	N/A	12
FSH3899-6P/12S	78	6	12	18
FSH3899-24S	78	N/A	24	24
FSH3899-18P	101	18	N/A	18
FSH3899-12P/12S	101	12	12	24
FSH3899-6P/24S	101	6	24	30
FSH3899-36S	101	N/A	36	36
FSH3899-24P	126.5	24	N/A	24
FSH3899-18P/12S	126.5	18	12	30
FSH3899-12P/24S	126.5	12	24	36
FSH3899-6P/36S	126.5	6	36	42
FSH3899-48S	126.5	N/A	48	48
FSH3899-60S	167	N/A	60	60
FSH3899-72S	191	N/A	72	72
FSH3899-84S	215	N/A	84	84
FSH3899-96S	239	N/A	96	96
FSH3899-6P/48S	167	6	48	54
FSH3899-12P/48S	191	12	48	60


Specifications Datasheet：

Electrical Datasheet:
Specifications	FSH3899-60S，72S,	FSH3899-6P/48S
	84S,96S	FSH3899-12P/48S
Lead Type	Silver plated，PTFE insulated	Power：AWG16  tinning wires，PTFE insulated
	AWG26	Signal：AWG26  silver plated，PTFE insulated
Lead Length	300mm(Customized Lead Length Available)
Voltage	240VAC/DC	Power：0-600VAC
		Signal：240VAC/DC
Current	Signal:2A	Power 10A ;Signal 2A
Dynamic Contact Resistance	≤0.01Ω
Mechanical Datasheet:
Operating Speed	0-1000 rpm continuous
Contact Material	Silver alloy or gold
Bearing	Precision Steel ball bearings
Housing	Engineering plastics
Operating Temp.	-40°C to 80°C



FSH3899 Outline dimension：



Remark:
◆Drawings for reference only, measurements are in millimeters.
◆Rotor and stator leads exit 4 places, 90°apart, 6 power leads（AWG16）or 12 signal（AWG26）leads per exit relative to circuit count

Color code:

FSH3899-60S Color code
EXIT1	OVERALL SHIELD +RED TUBE	SHIELD +RED TUBE	1	2	3	4	5	6	7	8	9	10	11	12
		SHIELD +BLK TUBE	13	14	15	16	17	18	19	20	21	22	23	24
EXIT2		SHIELD +GRN TUBE	25	26	27	28	29	30	31	32	33	34	35	36
EXIT3		SHIELD +BLU TUBE	37	38	39	40	41	42	43	44	45	46	47	48
EXIT4		SHIELD +RED TUBE	49	50	51	52	53	54	55	56	57	58	59	60
		THE COLORS	RED	WHT	BLK	BLU	GRN	YEL	PUP	GRY	BRN	ORN	DBNU	VIO
		OF LEADS
FSH3899-72S Color code
EXIT1	OVERALL SHIELD +RED TUBE	SHIELD +RED TUBE	1	2	3	4	5	6	7	8	9	10	11	12
		SHIELD +BLK TUBE	13	14	15	16	17	18	19	20	21	22	23	24
EXIT2	OVERALL SHIELD + GRN TUBE	SHIELD +GRN TUBE	25	26	27	28	29	30	31	32	33	34	35	36
		SHIELD +BLU TUBE	37	38	39	40	41	42	43	44	45	46	47	48
EXIT3	OVERALL SHIELD + BLK TUBE	SHIELD +RED TUBE	49	50	51	52	53	54	55	56	57	58	59	60
		SHIELD +BLK TUBE	61	62	63	64	65	66	67	68	69	70	71	72
		THE COLORS OF LEADS	RED	WHT	BLK	BLU	GRN	YEL	PUP	GRY	BRN	ORN	DBNU	VIO
FSH3899-84S Color code
EXIT 1	OVERALL SHIELD +RED TUBE	SHIELD +RED TUBE	1	2	3	4	5	6	7	8	9	10	11	12
		SHIELD +BLK TUBE	13	14	15	16	17	18	19	20	21	22	23	24
EXIT 2	OVERALL SHIELD + BLU TUBE	SHIELD +GRN TUBE	25	26	27	28	29	30	31	32	33	34	35	36
		SHIELD +BLU TUBE	37	38	39	40	41	42	43	44	45	46	47	48
EXIT 3	OVERALL SHIELD + BLK TUBE	SHIELD +BLK TUBE	49	50	51	52	53	54	55	56	57	58	59	60
		SHIELD +RED TUBE	61	62	63	64	65	66	67	68	69	70	71	72
EXIT 4		SHIELD +GRN TUBE	73	74	75	76	77	78	79	80	81	82	83	84
		THE COLORS OF LEADS	RED	WHT	BLK	BLU	GRN	YEL	PUP	GRY	BRN	ORN	DBNU	VIO
FSH3899-96S Color code
EXIT 1	OVERALL SHIELD +RED TUBE	SHIELD +RED TUBE	1	2	3	4	5	6	7	8	9	10	11	12
		SHIELD +BLK TUBE	13	14	15	16	17	18	19	20	21	22	23	24
EXIT 2	OVERALL SHIELD + GRN TUBE	SHIELD +GRN TUBE	25	26	27	28	29	30	31	32	33	34	35	36
		SHIELD +BLU TUBE	37	38	39	40	41	42	43	44	45	46	47	48
EXIT 3	OVERALL SHIELD + BLK TUBE	SHIELD +RED TUBE	49	50	51	52	53	54	55	56	57	58	59	60
		SHIELD +BLK TUBE	61	62	63	64	65	66	67	68	69	70	71	72
EXIT 4	OVERALL SHIELD + BLU TUBE	SHIELD +GRN TUBE	73	74	75	76	77	78	79	80	81	82	83	84
		SHIELD +BLU TUBE	85	86	87	88	89	90	91	92	93	94	95	96
		THE COLORS OF LEADS	RED	WHT	BLK	BLU	GRN	YEL	PUP	GRY	BRN	ORN	DBNU	VIO
FSH3899-6P/48S Color code
EXIT 1		SHIELD +RED TUBE	1	2	3	4	5	6
EXIT 2	OVERALL SHIELD + BLK TUBE	SHIELD +BLK TUBE	7	8	9	10	11	12	13	14	15	16	17	18
		SHIELD +GRN TUBE	19	20	21	22	23	24	25	26	27	28	29	30
EXIT 3	OVERALL SHIELD + BLU TUBE	SHIELD +BLU TUBE	31	32	33	34	35	36	37	38	39	40	41	42
		SHIELD +RED TUBE	43	44	45	46	47	48	49	50	51	52	53	54
		THE COLORS OF LEADS	RED	WHT	BLK	BLU	GRN	YEL	PUP	GRY	BRN	ORN	DBNU	VIO
FSH3899-12P/48S Color code
EXIT 1		SHIELD +RED TUBE	1	2	3	4	5	6
EXIT 2		SHIELD +RED TUBE							7	8	9	10	11	12
EXIT 3	OVERALL SHIELD + BLK TUBE	SHIELD +RED TUBE	13	14	15	16	17	18	19	20	21	22	23	24
		SHIELD +BLK TUBE	25	26	27	28	29	30	31	32	33	34	35	36
EXIT 4	OVERALL SHIELD + GRN TUBE	SHIELD +GRN TUBE	37	38	39	40	41	42	43	44	45	46	47	48
		SHIELD +BLU TUBE	49	50	51	52	53	54	55	56	57	58	59	60
		THE COLORS OF LEADS	RED	WHT	BLK	BLU	GRN	YEL	PUP	GRY	BRN	ORN	DBNU	VIO
