 FSC022 |
 You are here: Home - Products - FSC022 |
|
FSC022 |
 |
P/N: |
FSC022 |
Rings: |
24、36 |
Current: |
2、6、10、15A |
Voltage: |
240VAC/DC |
Dimensions(unit:mm D*L) : |
Φ22×19-41.2 |
Operating Speed: |
250rpm |
PDF Download: |
 |
| |
 |

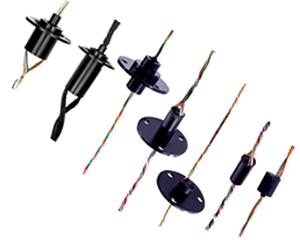

FSC022 Series
Slip Ring Capsule
1.Advanced brush contact technology,Foxtac holding the independence the intellectual property by ourselves.
2. Suffice the un-limit revolving video and the digital signals transmission of 360 degrees fully.
3.Product portfolios: a wide range of product line to meet customer’s diversified demand.
4.Long life expectancy
5. Can be customized for customer special requirement
Description
The slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The slip ring is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring.It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
The FSC Series find typical applications in
1. CCTV pan/tilt cameras and pedestals
2. Robots and downhole inspection equipment
3. Test and measuring equipment
4. Manufacturing and process control equipment
5. Computer peripherals
6. Display equipment Medical equipment
Description
The slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The slip ring is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring.It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
The SRC Series find typical applications in
1. CCTV pan/tilt cameras and pedestals
2. Robots and downhole inspection equipment
3. Test and measuring equipment
4. Manufacturing and process control equipment
5. Computer peripherals
6. Display equipment Medical equipment
| Standard FSC022 |
FSC022 Dimensions
|
|
|
|
Specifications Datasheet：
| Model |
#Rings
|
DIA ×LG(unit:mm)
|
Housing(unit:mm)
|
|
FSC022-24
|
24
|
Φ22×41.2
|
PA66
|
|
FSC022-36
|
24
|
Φ22×57.5
|
PA66
|
Electrical Data：
| Voltage |
240VDC－240VAC
|
|
Continous Curent(amps)
|
2A/ring
|
|
Lead size
|
AWG26 silver plated,PTFE insulated
|
|
Standard Lead lengths
|
250mm (other lengths on request)
|
|
High pot
|
500VAC@60Hz
|
|
Insulation Resistance
|
500MΩ/500VDC
|
|
Dynamic contact Resistance
|
＜0.01Ω
|
Mechanical data:
| Operating Speed |
250rpm
|
|
Temperature range
|
-20℃to+80℃
|
|
Contact material surface
|
Gold-on-gold
|
|
The stainless steel bearings
|
Miniature ball bearing with sealing shield
|
The slip ring lead color order (begin with the rotor lead exit)
|
FSC022-24
|
|
1、RED 2、GRN 3、YEL 4、PUP 5、GRY 6、BLK 7、BLU 8、DBLU 9、BRN 10、ORN 11、WHT 12、KHK 13、WHT－RED 14、WHT－BLK 15、WHT－BLU16、WHT－PUP 17、WHT－BRN 18、WHT－GRN 19、WHT－ORN 20、WHT－YEL 21、WHT－GRY 22、BLK－RED 23、BLK－BLU 24、YEL－GRN
|
|
Lead Color: Similar to above |
|
|
