FSH90190

P/N:

FSH90190

Rings:

6、24、36、48、96

Current:

5、10、20、30、50、100A

Voltage:

Power：0-600VAC Signal:0-240VAC

Dimensions(unit:mm D*L):

Φ180×88.5-308.5

Operating Speed:

800 RPM

PDF Download:

FSH90195Through Bore Slip Rings:

ID: 90mm
OD:195mm

Power Ring:   10A/Circuit
Signal Ring:   5A/Circuit

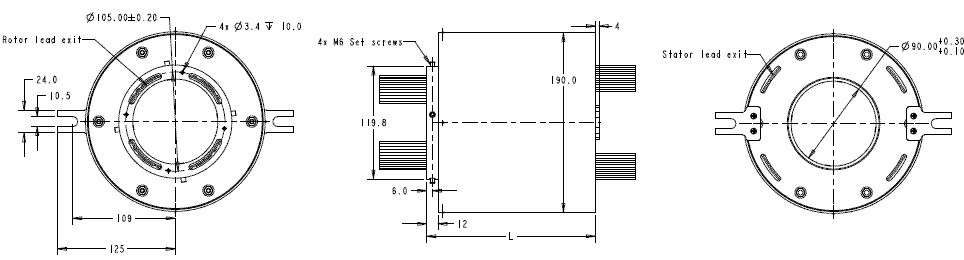

Outline Print as below:



Custimized Module Configuration  available:  For examples:  FSH80180-5P/10S
Pls contact our engineerings for the details specification & prints.

◆FSH Through Bore Slip Ring series is specially designed through bore for hydraulic or pneumatic rotating shaft installation.
◆Bore ID ranging from 12.7mm（0.5 inches),25.4mm(1 inches),35mm(1 3/8 inches),38mm(1.50 inches) to 200mm
◆Module design meets special requirement for Power Circuits & Signal Circuits configuration
◆Proven fiber brush techology, long life and maintainance-free performance while cost-effective
◆Engineering plastics Housing, Aluminium Alloy, Stainless Steel Housing optional
◆Wide range speed for different application, typically 250 RPM till 5000 RMP
◆International Protection IP class can meet IP66,typically IP54

Customzied FSH through bore slip ring available.

Please feel free contact us, our engineers will provide you recommendation and proposal.
