FSH80180

FSH80180

P/N:

FSH80180

Rings:

6、12、24、36、48、96

Current:

5、10、15、20、30、50、100A

Voltage:

Power:0-600VAC Signal:0-240VAC

Dimensions(unit:mm D*L):

Φ180×84.5-308.5

Operating Speed:

800 RPM

PDF Download:

FSH80180 PDF download

  Inquire Now

FSH80180 series
Through-bore dia. 80mm

◆FSH Through Bore Slip Ring series is specially designed through bore for hydraulic or pneumatic rotating shaft installation.
◆Bore ID ranging from 12.7mm(0.5 inches),25.4mm(1 inches),35mm(1 3/8 inches),38mm(1.50 inches) to 226mm
◆Module design meets special requirement for Power Circuits & Signal Circuits configuration
◆Proven fiber brush techology, long life and maintainenance-free performance while cost-effective
◆Engineering plastics Housing, Aluminium Alloy, Stainless Steel Housing optional
◆Wide range speed for different application, typically 250 RPM till 5000 RPM
◆International Protection IP class can meet IP66,typically IP54

Customized FSH through bore slip ring available.

Please feel free contact us, our engineers will provide you recommendation and proposal.

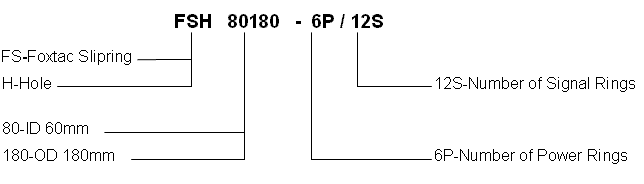

Circuits Configuration:




P,P1,P2,P3,P5 represent  10A,20A,30A,50A,100A repectively

Model Length L mm Current Total Circuits
Power P(10A,20A,30A,50A,100A) Signal S (5A)

FSH80180-6P 84.5 6 6
FSH80180-12S 84.5 12 12

FSH80180-12P 114.5 12 12
FSH80180-6P/12S 114.5 6 12 18
FSH80180-24S 114.5 24 24

FSH80180-18P 144.5 18 18
FSH80180-12P/12S 144.5 12 12 24
FSH80180-6P/24S 144.5 6 24 30
FSH80180-36S 144.5 36 36

FSH80180-24P 174.5 24 24
FSH80180-18P/12S 174.5 18 12 30
FSH80180-12P/24S 174.5 12 24 36
FSH80180-6P/36S 174.5 6 36 42
FSH80180-48S 174.5 48 48

FSH80180-30P 204.5 30 30
FSH80180-24P/12S 204.5 24 12 36
FSH80180-18P/24S 204.5 18 24 42
FSH80180-12P/36S 204.5 12 36 48
FSH80180-6P/48S 204.5 6 48 54
FSH80180-60S 204.5 60 60

FSH80180-36P 234.5 36 36
FSH80180-30P/12S 234.5 30 12 42
FSH80180-24P/24S 234.5 24 24 48
FSH80180-18P/36S 234.5 18 36 54
FSH80180-12P/48S 234.5 12 48 60
FSH80180-6P/60S 234.5 6 60 66
FSH80180-72S 234.5 72 72

FSH80180-42P 264.5 42 42
FSH80180-36P/12S 264.5 36 12 48
FSH80180-30P/24S 264.5 30 24 54
FSH80180-24P/36S 264.5 24 36 60
FSH80180-18P/48S 264.5 18 48 66
FSH80180-12P/60S 264.5 12 60 72
FSH80180-6P/72S 264.5 6 72 78
FSH80180-84S 264.5 84 84

FSH80180-48P 294.5 48 48
FSH80180-42P/12S 294.5 42 12 54
FSH80180-36P/24S 294.5 36 24 60
FSH80180-30P/36S 294.5 30 36 66
FSH80180-24P/48S 294.5 24 48 72
FSH80180-18P/60S 294.5 18 60 78
FSH80180-12P/72S 294.5 12 72 84
FSH80180-6P/84S 294.5 6 84 90
FSH80180-96S 294.5 96 96
Customized 216 signals circuits available.

Specifications Datasheet:
Electrical Datasheet:
Circuits Configuration See above spreadsheet
Lead Type
Power:tinning wires,PTFE or PVC insulated,AWG16
Signal:silver plated,PTFE or PVC insulated AWG22

Lead Length
500mm (or customized)
Volatage
Power0-600VACSignal0-240VAC
Current Power:10A/Ring Signal:5A/Ring
Electrial Noise ≤0.01Ω
Mechanical Datasheet:
Operating Speed 0 - 800 rpm
Contact Material silver or gold
Bearing Precision steel ball bearing
Housing Engineering Plastics or Aluminium
Operating Temp. -40°C   to 80°C
IP Class IP54

 FSH80180 outline dimensions


Remark:
1 Prints for reference only     Unit in millimeters.
2.Rotor and stator leads exit 4 places, 90°apart
