FSH50120

FSH50120

P/N:

FSH50120

Rings:

6,72

Current:

5、10、20、30、50、100A

Voltage:

Power:0-600VAC Signal:0-240VAC

Dimensions(unit:mm D*L):

Φ120×70-220 (ID 2

Operating Speed:

1000 rpm

PDF Download:

FSH50120 PDF download

  Inquire Now



FSH50120 Series Through Bore Slip Ring
Bore ID: 50mm
OD:120mm




es is specially designed through bore for hydraulic or pneumatic rotating shaft installation.
◆Bore ID ranging from 12.7mm (0.5 inches),25.4mm(1 inches),35mm(1 3/8 inches),38mm(1.50 inches) to 226mm
odule design meets special requirement for Power Circuits & Signal Circuits configuration
◆Proven fiber brush techology, long life and maintainenance-free performance while cost-effective
◆Engineering plastics Housing, Aluminium Alloy, Stainless Steel Housing optional
◆Wide range speed for different application, typically 250 RPM till 5000 RMP
◆International Protection IP class can meet IP66,typically IP54

Customized FSH through bore slip ring available.

Please feel free contact us, our engineers will provide you recommendation and proposal.

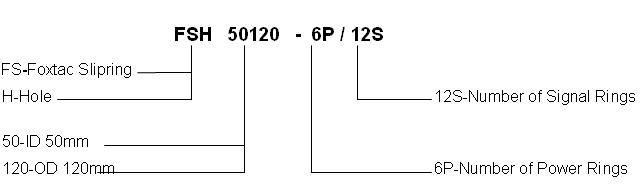

P, P1, P2,P3,P4respectively 10A, 20A,30A,50A,100A
Model Length(L=mm) Current Total Circuits
Power P(10、20、30、50 or 100A) Signal S(5A)

FSH50120-6P 70 6 N/A 6
FSH50120-12S 70 N/A 12 12

FSH50120-12P 100 12 N/A 12
FSH50120-6P/12S 100 6 12 18
FSH50120-24S 100 N/A 24 24

FSH50120-18P 130 18 N/A 18
FSH50120-12P/12S 130 12 12 24
FSH50120-6P/24S 130 6 24 30
FSH50120-36S 130 N/A 36 36

FSH50120-24P 160 24 N/A 24
FSH50120-18P/12S 160 18 12 30
FSH50120-12P/24S 160 12 24 36
FSH50120-6P/36S 160 6 36 42
FSH50120-48S 160 N/A 48 48

FSH50120-30P 190 30 N/A 30
FSH50120-24P/12S 190 24 12 36
FSH50120-18P/24S 190 18 24 42
FSH50120-12P/36S 190 12 36 48
FSH50120-6P/48S 190 6 48 54
FSH50120-60S 190 N/A 60 60

FSH50120-36P 220 36 N/A 36
FSH50120-30P/12S 220 30 12 42
FSH50120-24P/24S 220 24 24 48
FSH50120-18P/36S 220 18 36 54
FSH50120-12P/48S 220 12 48 60
FSH50120-6P/60S 220 6 60 66
FSH50120-72S 220 N/A 72 72

 Specifications Datasheet:
Electrical Datasheet:
Circuits Configuration See above spreadsheet
Lead Type
Power:tinning wires,PTFE or PVC insulated,AWG16
Signal:silver plated,PTFE or PVC insulated AWG22

Lead Length
500mm (or customized)
Volatage
Power0-600VACSignal0-240VAC
Current Power:10A/Ring Signal:5A/Ring
Electrial Noise ≤0.01Ω
Mechanical Datasheet:
Operating Speed 0 - 1000 rpm
Contact Material silver or gold
Bearing Precision steel ball bearing
Housing Engineering Plastics or Aluminium
Operating Temp. -40°C   to 80°C
IP Class IP54

FSH50120 Outline dimensions:


1.       Drawings for reference only, measurements are in millimeters.
2.       Rotor and stator leads exit 4 places, 90°apart
3.        IP:54
