FSH Through hole slip ring
- FSH |
|
|
 |
P/N: |
FSH |
Rings: |
View Data Sheet |
Current: |
2 to 100A |
Voltage: |
On requested |
Dimensions(unit:mm D*L): |
**** |
Operating Speed: |
**** |
PDF Download: |
 |
| |
 |
FSH Series
Slip rings through-bore
◆FSH Through Bore Slip Ring series is specially designed through bore for hydraulic or pneumatic rotating shaft installation.
◆Bore ID ranging from 12.7mm（0.5 inches),25.4mm(1 inches),35mm(1 3/8 inches),38mm(1.50 inches) to 200mm
◆Module design meets special requirement for Power Circuits & Signal Circuits configuration
◆Proven fiber brush techology, long life and maintainance-free performance while cost-effective
◆Engineering plastics Housing, Aluminium Alloy, Stainless Steel Housing optional
◆Wide range speed for different application, typically 250 RPM till 5000 RMP
◆International Protection IP class can meet IP66,typically IP54
Customzied FSH through bore slip ring available.
Please feel free contact us, our engineers will provide you recommendation and proposal.

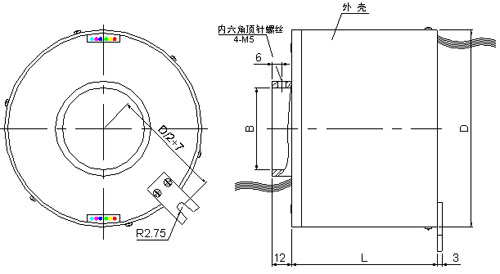

Outline dimension：
Specifications Datasheet：
| Model |
hrough-bore dia.B
|
Outer diameter D
|
rings(n)
|
length L
|
Maxrev(r/min)
|
current (A)
|
voltage AC
|
temperature (℃)
|
|
FSH010
|
10
|
55
|
1-36
|
30.0+n×3
|
300
|
1-10
|
380
|
-20～80
|
|
FSH015
|
15
|
60
|
1-36
|
30.0+n×3
|
300
|
1-10
|
380
|
-20～80
|
|
FSH020
|
20
|
70
|
1-40
|
30.0+n×3
|
300
|
1-10
|
380
|
-20～80
|
|
FSH025
|
25
|
70
|
1-40
|
30.0+n×3
|
300
|
1-10
|
380
|
-20～80
|
|
FSH030
|
30
|
95
|
1-40
|
30.0+n×3
|
250
|
1-10
|
380
|
-20～80
|
|
FSH035
|
35
|
110
|
1-40
|
30.0+n×3
|
250
|
1-10
|
380
|
-20～80
|
|
FSH040
|
40
|
110
|
1-50
|
40.0+n×3.5
|
250
|
1-10
|
380
|
-20～80
|
|
FSH045
|
45
|
120
|
1-50
|
40.0+n×3.5
|
250
|
1-10
|
380
|
-20～80
|
|
FSH050
|
50
|
120
|
1-50
|
40.0+n×3.5
|
250
|
1-10
|
380
|
-20～80
|
|
FSH055
|
55
|
120
|
1-50
|
40.0+n×3.5
|
250
|
1-10
|
380
|
-20～80
|
|
FSH060
|
60
|
124
|
1-60
|
40.0+n×3.5
|
250
|
1-10
|
380
|
-20～80
|
|
FSH065
|
65
|
124
|
1-60
|
40.0+n×3.5
|
250
|
1-10
|
380
|
-20～80
|
|
FSH070
|
70
|
140
|
1-60
|
40.0+n×3.5
|
250
|
1-10
|
380
|
-20～80
|
|
FSH075
|
75
|
150
|
1-60
|
46.5+n×3.5
|
250
|
1-10
|
380
|
-20～80
|
|
FSH080
|
80
|
150
|
1-72
|
46.5+n×3.5
|
250
|
1-10
|
380
|
-20～80
|
|
FSH090
|
90
|
170
|
1-72
|
59+n×5
|
250
|
1-10
|
380
|
-20～80
|
|
FSH100
|
100
|
180
|
1-80
|
59+n×5
|
250
|
1-10
|
380
|
-20～80
|
|
FSH110
|
110
|
190
|
1-80
|
61+n×5
|
200
|
1-10
|
380
|
-20～80
|
|
FSH120
|
120
|
200
|
1-96
|
63+n×5
|
200
|
1-10
|
380
|
-20～80
|
|
FSH130
|
130
|
220
|
1-96
|
65+n×5
|
200
|
1-10
|
380
|
-20～80
|
|
FSH140
|
140
|
230
|
1-96
|
67+n×5
|
200
|
1-10
|
380
|
-20～80
|
|
FSH150
|
150
|
240
|
1-110
|
69+n×5
|
200
|
1-10
|
380
|
-20～80
|
|
FSH160
|
160
|
258
|
1-110
|
73+n×5
|
150
|
1-10
|
380
|
-20～80
|
|
FSH170
|
170
|
260
|
1-110
|
73+n×5
|
150
|
1-10
|
380
|
-20～80
|
|
FSH180
|
180
|
270
|
1-124
|
75+n×5
|
150
|
1-10
|
380
|
-20～80
|
|
FSH190
|
190
|
280
|
1-124
|
75+n×5
|
150
|
1-10
|
380
|
-20～80
|
|
FSH200
|
200
|
390
|
1-124
|
80+n×5
|
150
|
1-10
|
380
|
-20～80
|
Remarks : The actual dimensions may changes according to the application & customers requirement.
Electrical data：
| Lead size |
Power：tinning wires，PTFE or PVC insulated
Signal：silver plated，PTFE or PVC insulated
|
|
Standard Lead lengths
|
500/1000mm(other lengths on request)
|
|
High pot
|
500VAC@60Hz
|
|
Insulation Resistance
|
≥500MΩ/500VDC
|
Mechanical data：
| Contact material surface |
Gold or silver alloy
|
|
bearings
|
Ball bearing of steel
|
|
Housing
|
Engineering plastic、Aluminium alloy or steel
|
|
Characteristic
|
Completely obturate
|
