FSH Through hole slip ring
- FSH60135 |
|
|
 |
P/N: |
FSH60135 |
Rings: |
6,96 |
Current: |
5、10、20、30、50、100A |
Voltage: |
Power:0-600VAC Signal:240VAC/DC |
Dimensions(unit:mm D*L): |
Φ135×72.5-287.5 |
Operating Speed: |
800rpm |
PDF Download: |
 |
| |
 |
FSH60135 Series Through Bore Slip Ring
Bore ID: 60mm
OD: 135mm
◆FSH 60135 series through Bore Slip Ring series is specially designed through bore for hydraulic or pneumatic rotating shaft installation.
◆Bore ID ranging from 12.7mm（0.5 inches),25.4mm(1 inches),35mm(1 3/8 inches),38mm(1.50 inches) to 226mm
◆Module design meets special requirement for Power Circuits & Signal Circuits configuration
◆Proven fiber brush techology, long life and maintainance-free performance while cost-effective
◆Engineering plastics Housing, Aluminium Alloy, Stainless Steel Housing optional
◆Wide range speed for different application, typically 250 RPM till 5000 RPM
nternational Protection IP class can meet IP66,typically IP54
Customized FSH through bore slip ring available.
Please feel free contact us, our engineers will provide you recommendation and proposal.

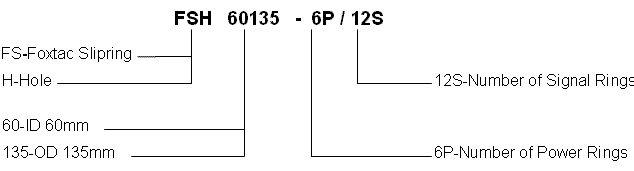

Circuits Configurations:
10A,20A,30A,50A,100A
| Model |
Length L mm |
Current |
Total Circuits |
| Power 10A、20A、30A或50A、100A) |
Signal S(5A) |
| |
| FSH60135-6P |
77.5 |
6 |
— |
6 |
| FSH60135-12S |
77.5 |
— |
12 |
12 |
| |
| FSH60135-12P |
107.5 |
12 |
— |
12 |
| FSH60135-6P/12S |
107.5 |
6 |
12 |
18 |
| FSH60135-24S |
107.5 |
— |
24 |
24 |
| |
| FSH60135-18P |
137.5 |
18 |
— |
18 |
| FSH60135-12P/12S |
137.5 |
12 |
12 |
24 |
| FSH60135-6P/24S |
137.5 |
6 |
24 |
30 |
| FSH60135-36S |
137.5 |
— |
36 |
36 |
| |
| FSH60135-24P |
167.5 |
24 |
— |
24 |
| FSH60135-18P/12S |
167.5 |
18 |
12 |
30 |
| FSH60135-12P/24S |
167.5 |
12 |
24 |
36 |
| FSH60135-6P/36S |
167.5 |
6 |
36 |
42 |
| FSH60135-48S |
167.5 |
— |
48 |
48 |
| |
| FSH60135-30P |
197.5 |
30 |
— |
30 |
| FSH60135-24P/12S |
197.5 |
24 |
12 |
36 |
| FSH60135-18P/24S |
197.5 |
18 |
24 |
42 |
| FSH60135-12P/36S |
197.5 |
12 |
36 |
48 |
| FSH60135-6P/48S |
197.5 |
6 |
48 |
54 |
| FSH60135-60S |
197.5 |
— |
60 |
60 |
| |
| FSH60135-36P |
227.5 |
36 |
— |
36 |
| FSH60135-30P/12S |
227.5 |
30 |
12 |
42 |
| FSH60135-24P/24S |
227.5 |
24 |
24 |
48 |
| FSH60135-18P/36S |
227.5 |
18 |
36 |
54 |
| FSH60135-12P/48S |
227.5 |
12 |
48 |
60 |
| FSH60135-6P/60S |
227.5 |
6 |
60 |
66 |
| FSH60135-72S |
227.5 |
— |
72 |
72 |
| |
| FSH60135-42P |
257.5 |
42 |
— |
42 |
| FSH60135-36P/12S |
257.5 |
36 |
12 |
48 |
| FSH60135-30P/24S |
257.5 |
30 |
24 |
54 |
| FSH60135-24P/36S |
257.5 |
24 |
36 |
60 |
| FSH60135-18P/48S |
257.5 |
18 |
48 |
66 |
| FSH60135-12P/60S |
257.5 |
12 |
60 |
72 |
| FSH60135-6P/72S |
257.5 |
6 |
72 |
78 |
| FSH60135-84S |
257.5 |
— |
84 |
84 |
| |
| FSH60135-48P |
287.5 |
48 |
— |
48 |
| FSH60135-42P/12S |
287.5 |
42 |
12 |
54 |
| FSH60135-36P/24S |
287.5 |
36 |
24 |
60 |
| FSH60135-30P/36S |
287.5 |
30 |
36 |
66 |
| FSH60135-24P/48S |
287.5 |
24 |
48 |
72 |
| FSH60135-18P/60S |
287.5 |
18 |
60 |
78 |
| FSH60135-12P/72S |
287.5 |
12 |
72 |
84 |
| FSH60135-6P/84S |
287.5 |
6 |
84 |
90 |
| FSH60135-96S |
287.5 |
— |
96 |
96 |
Specifications Datasheet:
| Electrical Datasheet： |
| Circuits Configuration |
See above spreadsheet |
| Lead Type |
Power：tinning wires，PTFE or PVC insulated,AWG16
Signal：silver plated，PTFE or PVC insulated AWG22
|
| |
| Lead Length |
500mm (or customized)
|
| Volatage |
Power：0-600VAC；Signal：0-240VAC
|
| Current |
Power:10A/Ring Signal:5A/Ring |
| Electrial Noise |
≤0.01Ω |
| Mechanical Datasheet: |
| Operating Speed |
0 - 1000 rpm |
| Contact Material |
silver or gold |
| Bearing |
Precision steel ball bearing |
| Housing |
Engineering Plastics or Aluminium |
| Operating Temp. |
-40°C to 80°C |
| IP Class |
IP54 |
FSH60135 outline dimensions:
Remark:
1. Drawings for reference only, measurements are in millimeters.
2. Rotor or and stator leads exit 4 places, 90°apart |
|
